New possibilities with Dynamic Image Analysis

The principle of Dynamic Image Analysis, offers all benefits of an analysis via microscope, but records due to the fully automatic process with up to 75 images per second a considerably higher number of particles. Instead of just one image, any freely definable number of images can be recorded and evaluated. You can see the result of the analysis directly without any complicated evaluation just like with a microscope. The advantages are faster, representative results and higher precision in evaluation. And this for a particle size of 20 μm to 20 mm.

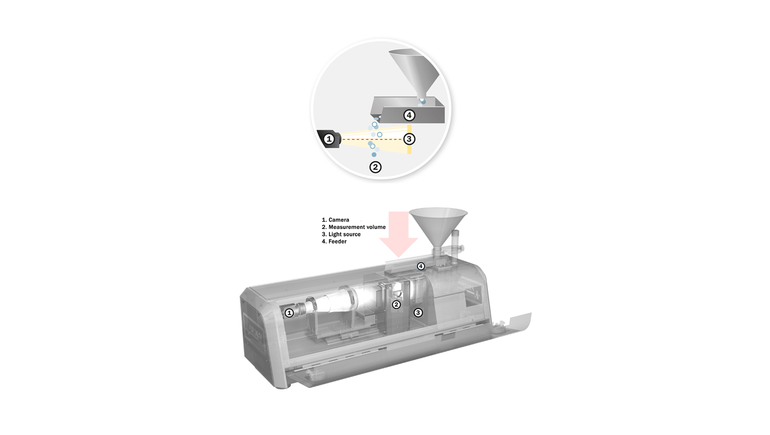

For dry measurement, the sample material is filled into the funnel and conveyed to the falling chute via the automatically controlled feeder, which its U-shaped cross section ensures a good material feed. There, the sample falls through the measuring chamber between the camera and LED strobe light into an easy to clean sample collecting vessel. The images recorded continuously during this process offer a variety of evaluation possibilities. And the sample remains undamaged and completely intact throughout the entire analysis process.

For wet measurement, for perfect dispersion, the sample material is feed into a closed liquid circulation system and is pumped with high power through the measuring cell between camera and LED strobe light. The continuously obtained images are the basis for the analysis with a variety of evaluation possibilities.
